SEWPRO PSM-5020CH

SEWPRO PSM-5020CH – Programmable Power for Extra Heavy-Duty Webbing and Straps

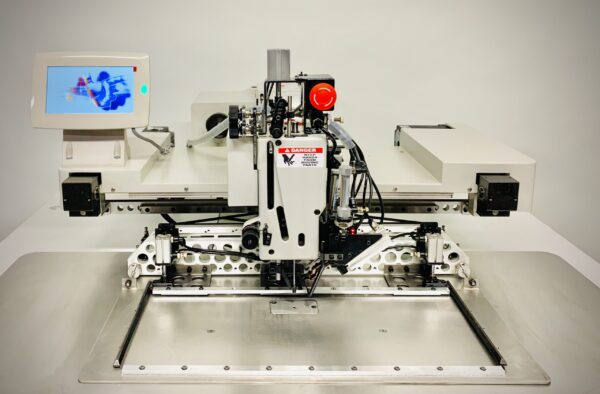

The SEWPRO PSM-5020CH is an extra heavy-duty, electronically-controlled sewing machine with a 500x200mm working area designed for precise, programmable stitching on large, bulky, and high-strength materials. Built for industrial webbing, tie-down straps, and heavy synthetic materials, this model combines exceptional strength with advanced automation.

Powered by a 220V single-phase system with pneumatic presser foot drive, it offers a maximum speed of 600 RPM (material-dependent) and can handle thread sizes from 138 to 415. Its barrel shuttle hook ensures excellent stitch consistency even with thick threads, while the touch-screen display/programmer makes pattern creation and storage easy — with memory for up to 120 patterns.

For added productivity, the PSM-5020CH can be equipped with a hot knife thread cutter (optional) and cassette-style clamp for multi-cycle sewing operations.

---

Technical Specifications

---

Key Features

• Large 500x200mm Sewing Area – Handles oversized industrial products.

• Extra Heavy-Duty Build – Designed for thick webbing, leather, and coated fabrics.

• Programmable Stitching – Store and recall up to 120 custom patterns.

• Barrel Shuttle Hook – Reliable performance with heavy threads.

• Optional Hot Knife Cutter – Clean thread trimming without fraying.

---

Ideal Applications

The SEWPRO PSM-5020CH is perfect for:

• Industrial webbing and tie-down straps

• Safety harnesses and lifting slings

• Cargo restraint systems

• Large leather or synthetic panels

• Outdoor and marine protective covers

• Military and tactical gear manufacturing
