SEWPRO 224E-6040

SEWPRO 224E-6040 – Large-Area Programmable Sewing with Dahao Control

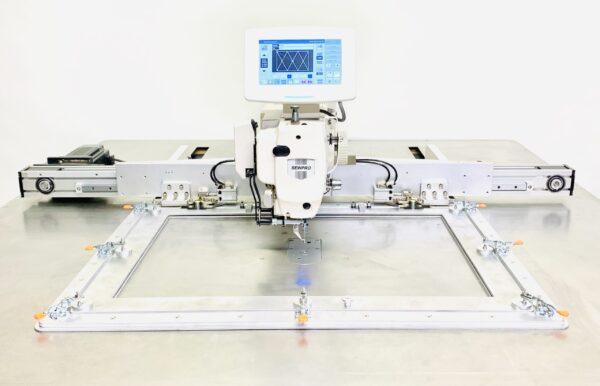

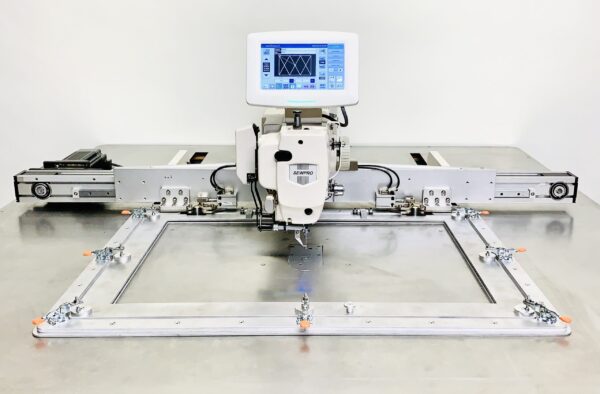

The SEWPRO 224E-6040 is a large-area programmable pattern sewing machine with a 600×400mm working area, perfect for producing oversized and complex stitch patterns. Featuring the Dahao Control System with on-board touch screen programming, it allows for fast setup, easy customization, and high-precision sewing operations.

With a maximum sewing speed of 2500 RPM (when stitching lengths of 3mm or less), a 0.5–12.5mm adjustable stitch length, and 41.2mm needle bar stroke, this machine delivers accuracy and efficiency on a wide range of materials. The 25mm pneumatic feeding frame lift and jump foot stroke up to 7.0mm ensure smooth operation over bulky or layered fabrics.

Powered by a 750W direct drive servo motor and capable of storing patterns via USB drive, the SEWPRO 224E-6040 is ideal for high-volume production where speed, accuracy, and flexibility are essential.

Technical Specifications

Key Features

• Large 600×400mm Sewing Area – Perfect for oversized patterns.

• Dahao Touch Screen Control – On-board programming for fast setup.

• High-Speed Operation – Up to 2500 RPM for shorter stitch lengths.

• USB Pattern Storage – Easily load and save designs.

• Pneumatic Feeding Frame Lift – Handles thick or multi-layer materials.

• Adjustable Jump Foot Stroke – Smooth operation over seam variations.

Ideal Applications

The SEWPRO 224E-6040 is perfect for:

• Large patch and applique sewing

• Outdoor gear and tent manufacturing

• Automotive and marine upholstery panels

• Industrial webbing and cargo restraints

• Safety harness and strap assemblies

• Leather goods and decorative stitching

• Furniture upholstery panel sewing
